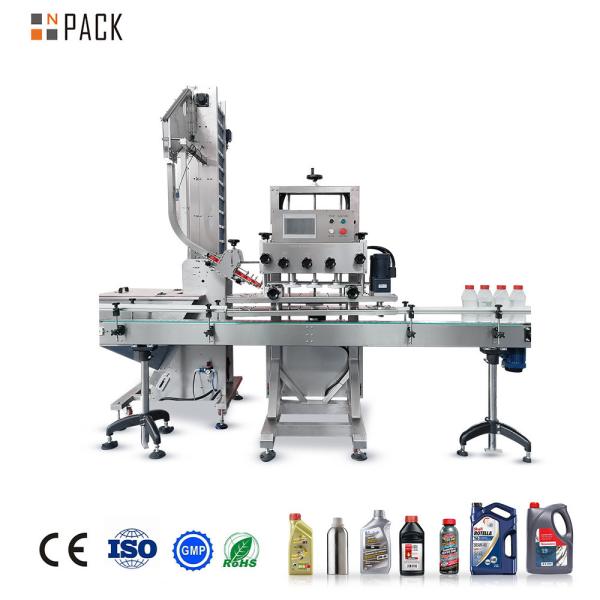

Automatic Linear Spindle Capping Machine

The NP-LC automatic spindle screw capping machine is extremely flexible and capable of accurately and rapidly capping a variety of cap types, including trigger caps, metal caps, flip caps, and more. This machine is designed to meet the diverse capping needs of various industries, ensuring efficiency and precision in the packaging process.

Main Features:

1. Variable Speed AC Motors:The machine is equipped with variable speed AC motors, allowing for precise control and adjustment to match different production requirements.
2. Spindle Wheels Adjustment Knobs: Features spindle wheels adjustment knobs with lock nut hand wheels, ensuring easy and secure adjustments for optimal performance.
3. Meter Index: Includes a meter index for easy mechanical adjustment, enabling quick and accurate setup changes without the need for specialized tools.
4. No Change Parts Required: The design eliminates the need for change parts for a wide range of containers, enhancing versatility and reducing operational costs.
5. Comprehensive Universal Cap Chute and Escapement: The system is designed to handle various cap types efficiently, ensuring reliable and consistent capping.
6. 2-Layer Bottle Clamping Belt: Equipped with a 2-layer bottle clamping belt, the machine is suitable for containers of various shapes and sizes, providing stability and accuracy during the capping process.

Product Parameters

6 Wheels
1. Each wheels speed is indivadually adjustable, requency controlling
2. The wheels can run in opposite direction to make cap fitting the bottles well if necessary
3. Wheels are made of soft material to prevent caps from damage
4. Wheels are horizontally adjustable for different sizes of caps
5. Wheels are vertically adjustable for bottles of different height
6. Each wheels driven by one motor

Two-layer Bottle Clamp Belt
The double belts height is adjustable to fit differnet sizes bottles.and the angle is adjustable according to the bottle shape, more stable. Speed is frenquecy contolled to match the conveyor and capping speed

Motors

1. 6 motors for 6 capping wheels, and the motors can change to servo motor for torgue adjustable if customer need

2. 2 motors for botle clamping belt

3. 1 motor for machine height adjutment up and down

4. Capping torgue is adjustable for option
