NP-LC Full-automatic Linear Spindle Capping Machine
The NP-LC
Capping Machine is capable of performing automatic bottle feeding, cap
unscrambling, cap conveying, cap placing, cap pressing, cap
screwing, and bottle discharging.
The primary drive components are located within the electric
cabinet, preventing contamination of materials from wear on the
drive mechanism. All parts that come into contact with materials
are highly polished for precision. Additionally, the machine is
equipped with safety protection devices that stop the machine if no
cap is detected and start the machine when a cap is detected.
MAIN FEATURE
1. The machine features a capping head designed specifically for
the cap lid, with adjustable torque to prevent the lid from
breaking or being damaged. This machine is ideal for capping round
flat-top lids, particularly for bottles where the bottle mouth
height is equal to or lower than the bottle body.
2. It has an advanced human-machine control system, equipped with
data storage and malfunction alarm functions, making it easy to
operate.
3. The entire machine is made of SUS#304 stainless steel, offering
a perfect appearance design and meeting GMP standards.
4. The capping heads are available in single, double, triple, and
quadruple configurations, among others, as options.
Product Parameters
| Name/Model | NP-LC Automatic linear spindle
capping machine |
| Capacity | 0-200b/min (Subject to bottle and cap) |
| Cap Diameter | Φ20-120mm |
| Bottle Height | 40-460mm |
| Demensions | 1060*896*1620mm |
| Voltage | AC220V 50/60Hz |
| Power | 1600W |
| weight | 500KG |
| Cap Feeding System | Elevator Feeder |

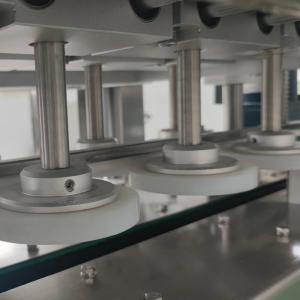

6 Wheels
1. Each wheels speed is indivadually adjustable, requency
controlling
2. The wheels can run in opposite direction to make cap fitting the
bottles well if necessary
3. Wheels are made of soft material to prevent caps from damage
4. Wheels are horizontally adjustable for different sizes of caps
5. Wheels are vertically adjustable for bottles of different height
6. Each wheels driven by one motor
Two-layer Bottle Clamp Belt
The double belts height is adjustable to fit differnet sizes
bottles.and the angle is adjustable according to the bottle shape,
more stable. Speed is frenquecy contolled to match the conveyor and
capping speed
Motors1. 6 motors for 6 capping wheels, and the motors can change to servo motor for
torgue adjustable if customer need
2. 2 motors for botle clamping belt
3. 1 motor for machine height adjutment up and down
4. Capping torgue is adjustable for option
Product Application
After-sale Service
1. Installation:
Our team of skilled technicians is ready to travel and install the
filling machine. The service fee covers installation, travel, meal
expenses, and other related costs.
2. Training:
To ensure optimal performance of the filling machine, we offer
on-site or factory training for dealers, machine operators,
engineers, and technicians.
3. Guarantee:
When repairing the filling machine, we provide efficient service, a
one-year quality assurance period, parts supply, and swift feedback
for troubleshooting.
4. Consulting Service:
Take advantage of our complimentary consultation service. Our
professional sales team will guide you to the most suitable
solution, complete with CAD drawing designs for the filling
machine.
5. Technical Support:
Benefit from our all-weather, long-term technical support. Simply
drop us an email or give us a call, and we'll provide quick
feedback, ensuring you can be carefree.
6. Spare Parts:
During transportation, we include a set of vulnerable spare parts
for the filling machine at no additional cost. You can also order a
comprehensive range of high-quality parts at any time.
