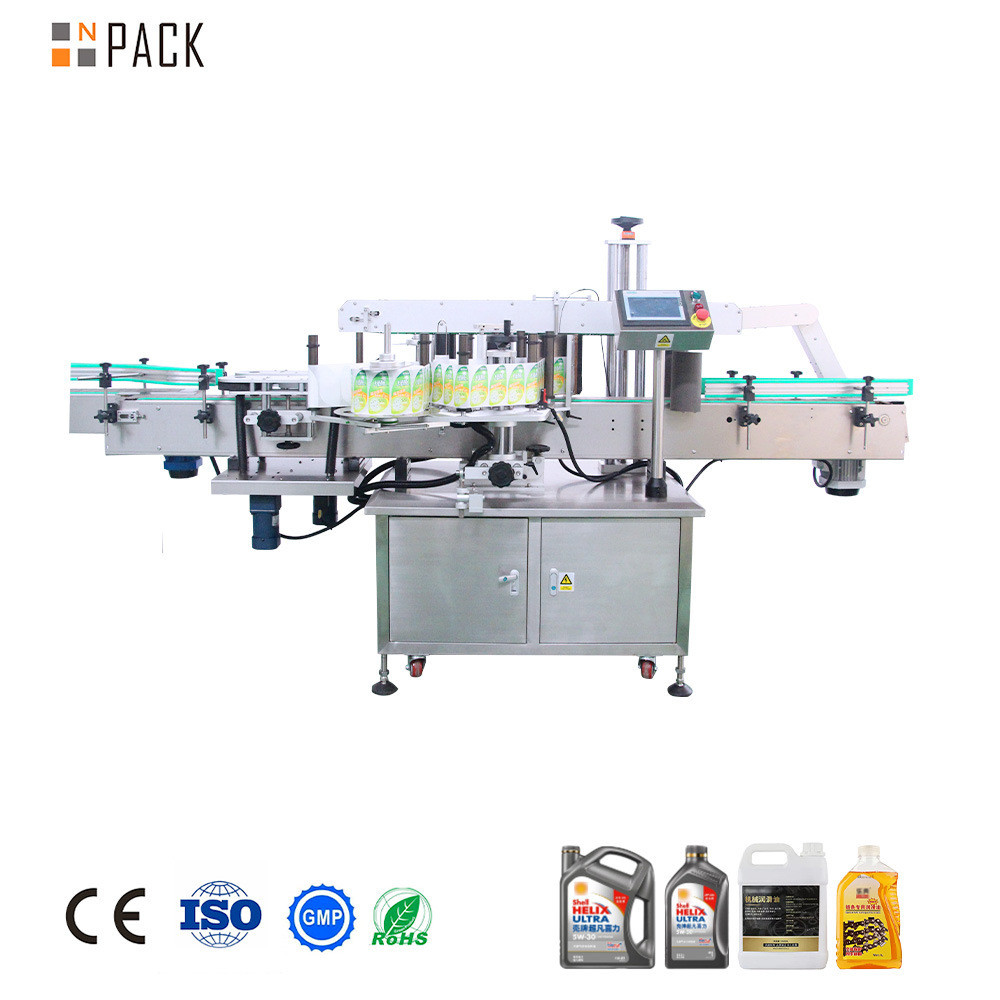

Automatic Sticker Double Sides Labeling Machine
The automatic double-sided adhesive labeling machine is engineered to apply sticker labels on both the front and back
surfaces of bottles, jars, and similar containers, regardless of
whether they are round, flat, oval, rectangular, or square in
shape. The labeling speed relies on the consistent and stable
movement of the products along the machine's conveyor system,
especially when operating at higher speeds.
Operation Process:
Manually place products (or connect to an assembly line) → Product
conveying → Product separation → Product alignment → Labeling and
re-labeling (automatically performed by the machine) → Collection
of labeled products.
Main Features
1. Easy adjustment, allowing for front, back, left, right, up, and
down positioning, as well as adjustable flat surfaces and angled
surfaces. The adjustable seat ensures that different bottle shapes
can be labeled without any dead angles, making adjustments quick
and simple.
2. Features an automatic bottle separation mechanism using a
star-type system, which effectively prevents errors during bottle
separation and enhances stability.
3. Touch screen control with an HMI that is user-friendly, offering
educational features and clear, easily adjustable parameters.
4. Intelligent control system with automatic photoelectric
tracking, ensuring that labels are not dispensed when no product is
present. It includes automatic correction and testing functions to
prevent label leakage and wastage.
5. Constructed with stainless steel and aluminum alloy, the machine
is durable, hygienic, and compliant with GMP requirements.
6. Includes features such as automatic stop, product counting, and
power-saving mode (automatically enters standby mode to save energy
when no products are detected for a set period).
Product Parameters
|
Labeling Speed | 60-350pcs/min (Depending on label length and bottle thickness) |
Height of Object | 30-350mm |
Thickness of Object | 20-120mm |
Height of Label | 15-140mm |
Length of Label | 25-300mm |
Label Roller Inside Diameter | 76mm |
Label Roller Outside Diameter | 420mm |
Accuracy of Labeling | ±1mm |
Power Supply | 220V 50/60HZ 3.5KW Single-phase |
Gas Consumption of Printer | 5Kg/cm^2 |
Size of Labeling Machine | 2800(L)×1650(W)×1500(H)mm |
Weight of Labeling Machine | 450Kg |
Product Details
